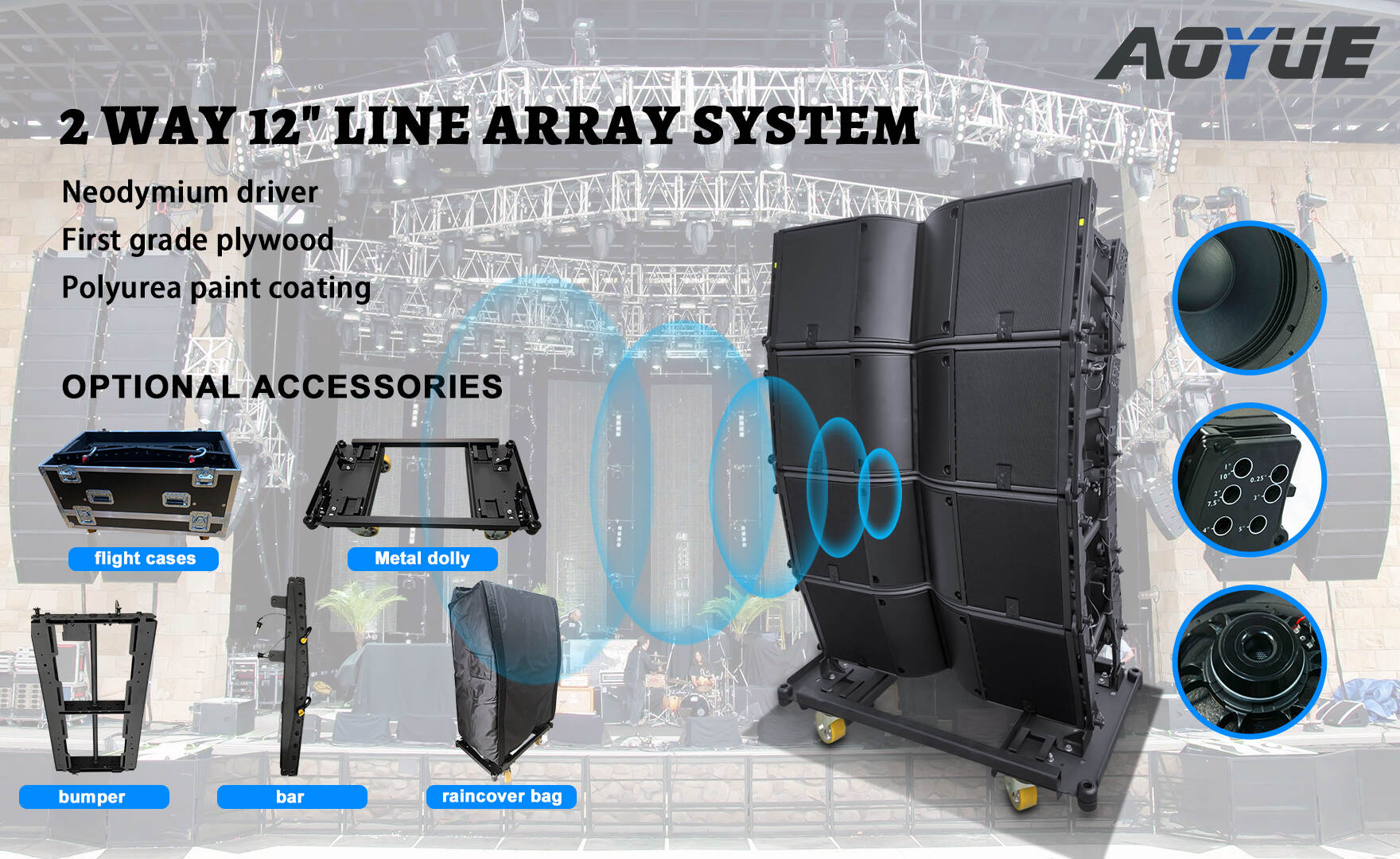

K3 Professional 2 Way Passive Dual 12 Inch Line Array Speaker

Nous contacter

Inquiry Basket

Code produit：

FEO：

Disponible

Goûter：

Disponible

Paiement：

T/T,Western Union,Other,PayPal

Lieu d'origine：

China

Capacité d'approvisionnement：

100 piece pour Mois

PRODUIT CONNEXE

Nous contacter

Name

Name can't be empty

* Email

Email can't be empty

Phone

Phone can't be empty

Company

Company can't be empty

* Message

Message can't be empty

Soumettre

Type	2-way audio line array system
Usable bandwidth (-10 dB)	42 Hz – 20 kHz
Maximum SPL1	143 dB
Nominal directivity (-6 dB)	Horizontal: 70° / 110° symmetric or 90° asymmetric
Nominal directivity (-6 dB)	vertical: depending on the number of elements and array curvature
Transducers	LF: 2 × 12″ neodymium cone driver
Transducers	HF: 1 × 4″ diaphragm compression driver, neodymium
Acoustical load	LF: bass-reflex, L-Vents
Acoustical load	HF: DOSC waveguide, Panflex
Nominal impedance	LF : 8 Ω
Nominal impedance	HF : 8 Ω
RMS power handling	LF: 2 x 450 W
RMS power handling	HF: 140 W
Connectors	2 × 4-point speakON
Rigging and handling	Flush-fitting 4-point rigging system
	2 handles
	inter-enclosure angles: 0.25°, 1°, 2°, 3°, 4°, 5°, 7.5° or 10°
Cabinet	First grade Russian birch plywood, high density polyethylene Front steel grill with anti-corrosion coating acoustically neutral 3D fabric
Finish	Dark grey brown Pantone 426 C
Dimension	950 x 402 x 355/286 mm 37.4 x 15.8 x 13.9/11.2in
Weight (net)	43 kg / 95 lb


Yellow fluorescent label.	Angle adjustment pin.
The label won't show if it hangs properly, on the contrary, if it's not hung properly, you will see a prominent yellow fluorescent label	Insert the angle adjustment pin into the corresponding angle of 0.25°, 1°, 2°, 3°, 4°, 5°, 7.5° or 10°: the cabinet will automatically adjust！

K3 Professional 2 Way Passive Dual 12 Inch Line Array Speaker

ABOUT US


2 × 12’’ neodymium cone driver(Detail1)	2 × 12’’ neodymium cone driver (Detail2)	One 4 inch midrange
