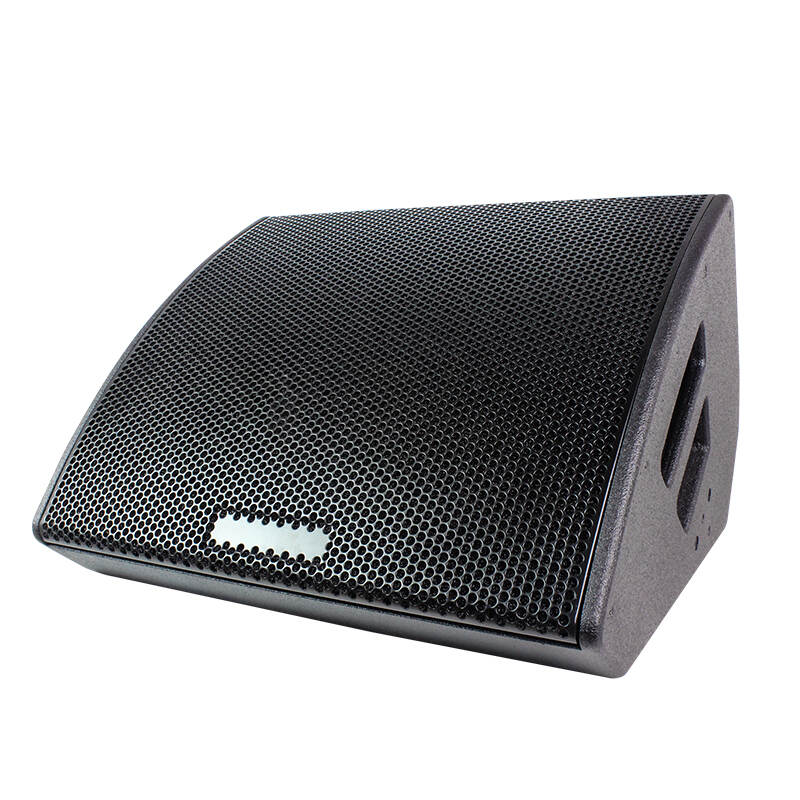

M4 active 15 Inch 2 Way powered Stage Monitor Speaker
| MT-04 2-way stage monitor Specification | |
| Frequency response (-5 dB standard) | 55 Hz - 17 kHz |
| Maximum SPL | 135 dB |
| Nominal directivity (-6 dB) | Enclosure: 30° L-Fins: 110° / 70° symmetric , 90° asymmetric |
| Nominal impeadance | 8 Ω |
| Power handling capacity (RMS/peak 10 ms) | 400/1600 W |
| Nominal dispersion angle (h x v) | 50° x 70° rotatable |
| Components | 15" driver with neodymium magnet |
| coaxial 1.3" exit compression driver with 3" coil and constant directional horn |
|
| passive crossover network | |
| Dimensions (H x W x D) | 363 x 580 x 505 mm |
| Weight | 20 kg / 44 lb |
FEATURE
►Its constant pointing angle of 50°x 70° (horizontal x vertical) provides accurate coverage of the stage area.
►The MT-04 can also be operated in 2-Way Active mode.And it also have passive version.
►When the cabinet is arranged vertically, the M4 can be used as a powerful main expansion system with a 70° x 50° dispersion suitable for a variety of applications.
►For fixed installations, the coverage angle of the M4 driver assembly can be rotated in 45° increments.
►The MT-04 speaker cabinet has an anti-collision coating and is equipped with multiple handles, screw holes and a socket for mounting a speaker stand.
►The front of the speaker cabinet is protected by a rigid metal grille.
►The bottom panel has two anti-slip strips to protect the cabinet from scratching and prevents movement.
| THE REAR OF ACTIVE VERSION | THE REAR OF PASSIVE VERSION |
 |
 |
M4 STAGE MONITOR IN FACTORY (ACTIVE)
PASSIVE VERSION
